CBM-Industrial / Garage Door
DISCONTINUED: This page is legacy only. All my tools are developed solely to improve my own real-world productivity, in my spare time from a real full-time job and sold on request for a nominal fee only. After over 20 years, I discontinued my development for Vectorworks since I moved to Archicad.
Draws: schematic industrial/garage door. For insertion in straight walls, with variable track angle for sectional doors, optional reveals, drainage, different cover types. Supports custom profiles, part textures, plug-in styles, catalogs on demand, automaps its own IFC export.

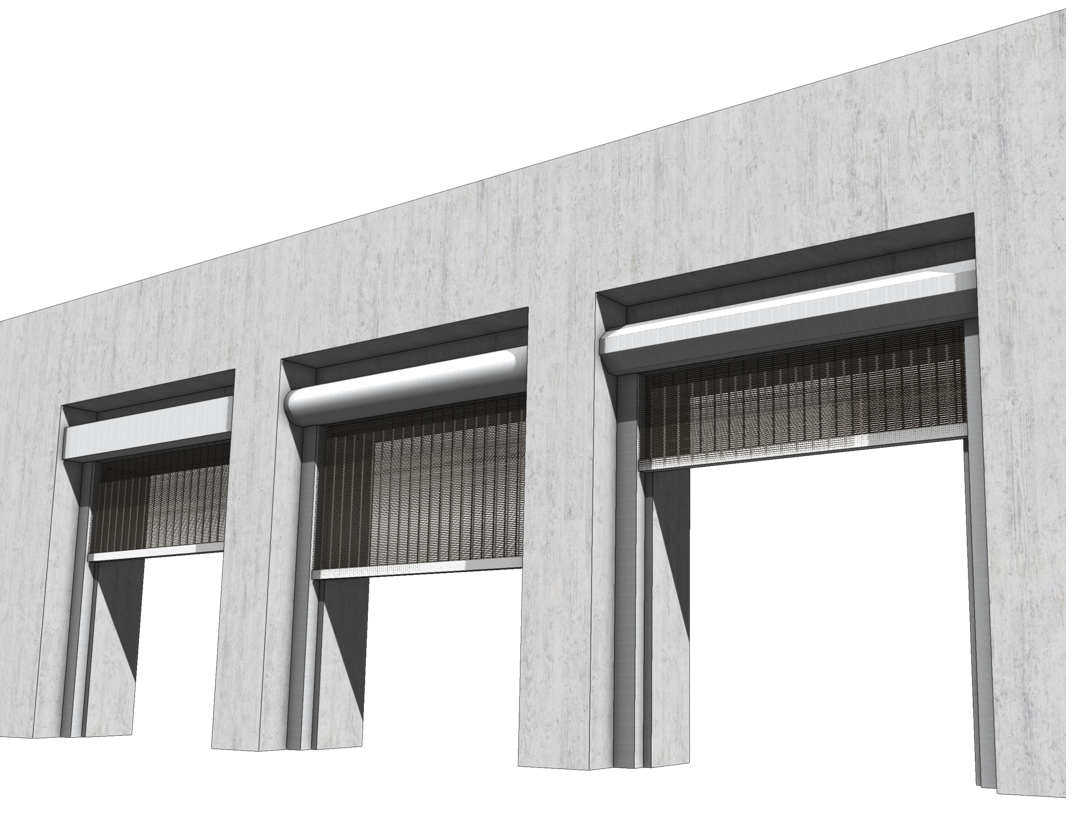

Configurations: rolling up, sectional up
Outputs: 2D, 3D, IfcDoor, IfcOpening, DIN 276 Classification
Parameters:

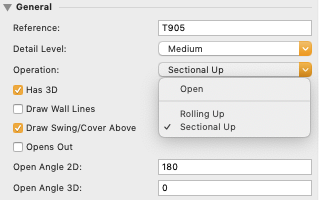

General
Minimal interface

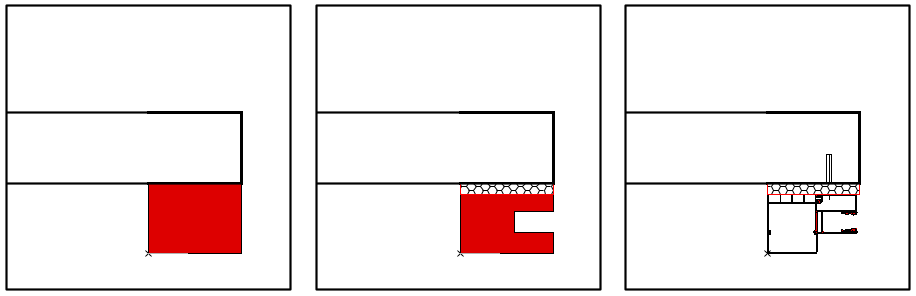

Displays three 2D detail levels

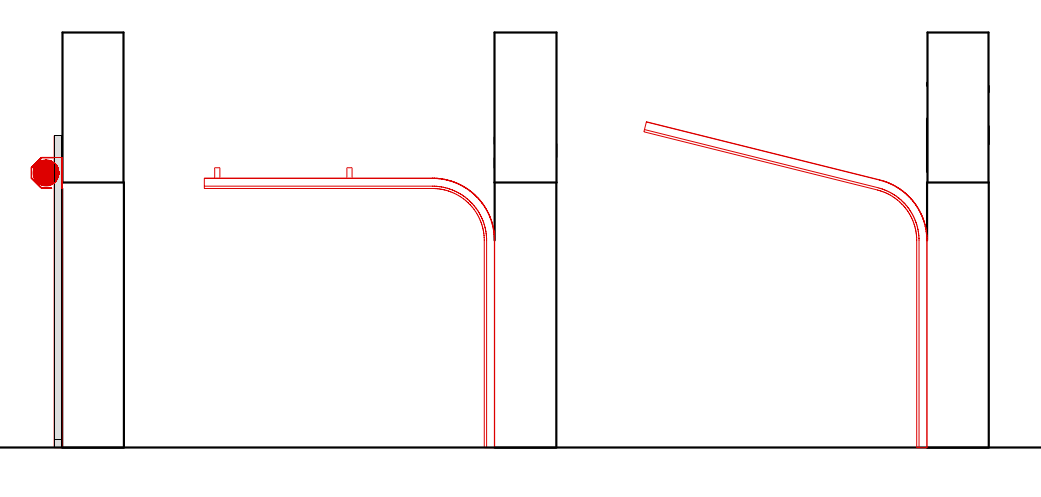

Configurations: Rolling up and Sectional up with variable angle

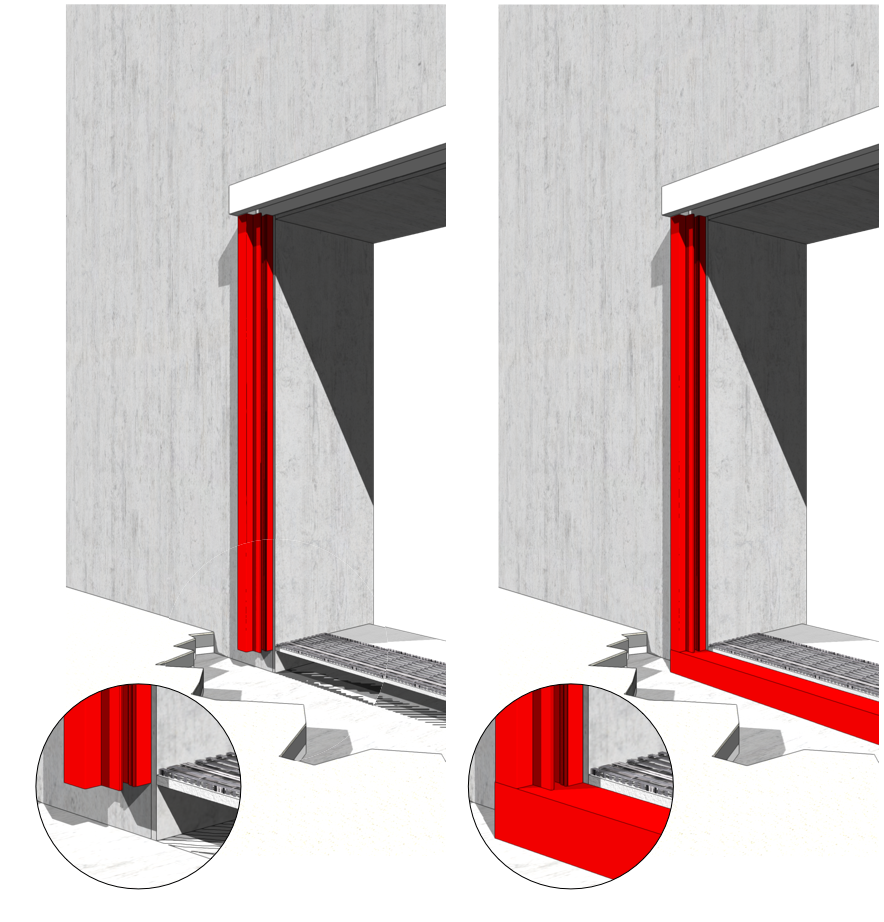

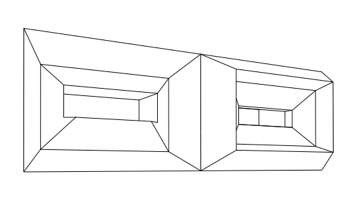

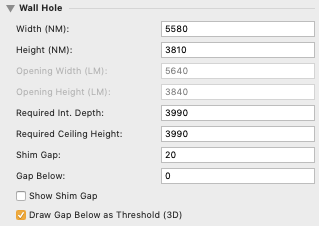

Wall Hole
How the door element cuts into walls
Wall hole to carrying slab, optional constructive threshold

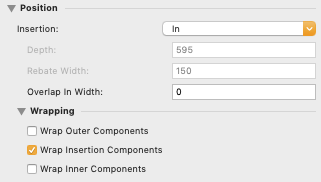

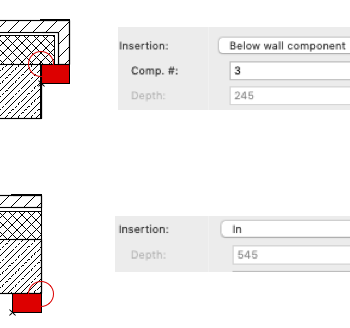

Position
Position relatively to wall components
Full styleable insertion, optional component wrapping

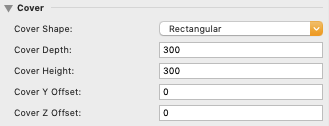

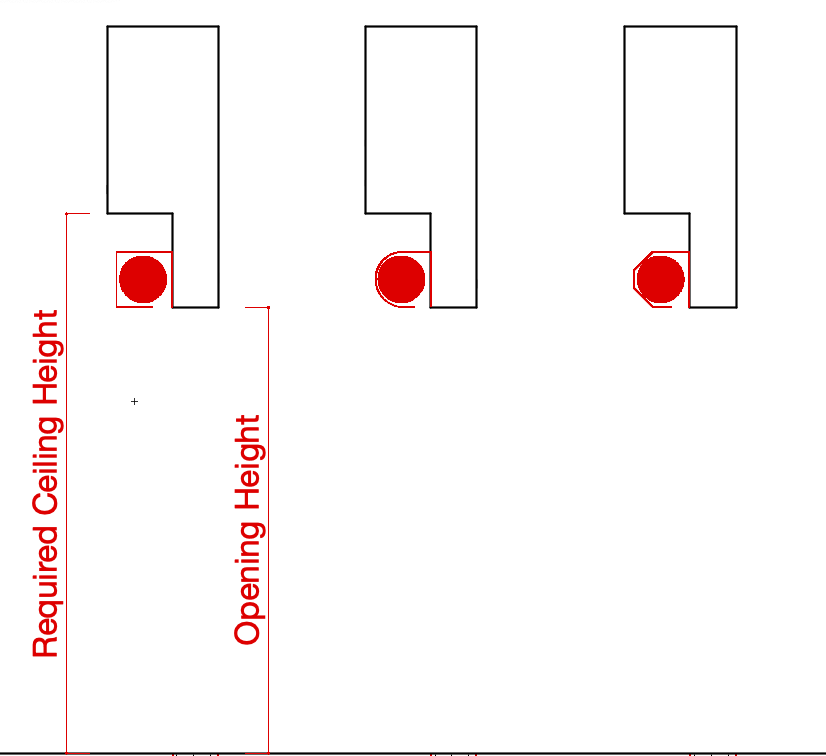

Cover
Cover shapes: round, rectangular and edged

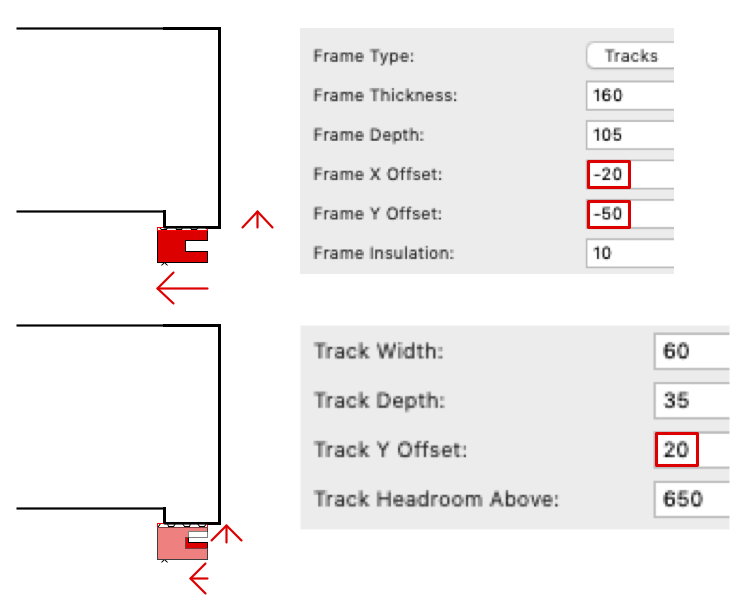

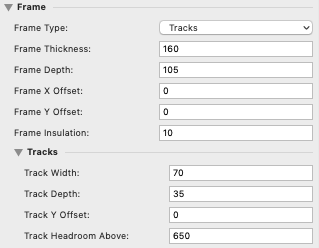

Frame
Configurations: block, tracks and custom profile
Precise Frame and Track positioning
Precise detailing with custom profiles

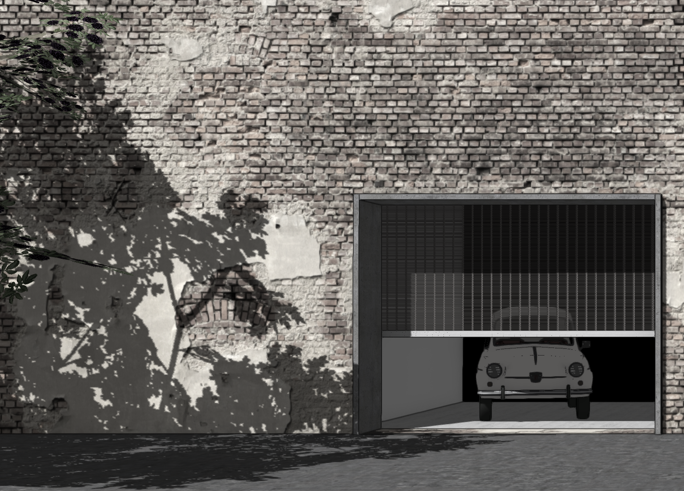

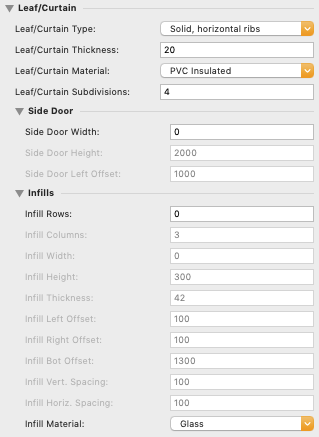

Leaf/Curtain
Leaf settings

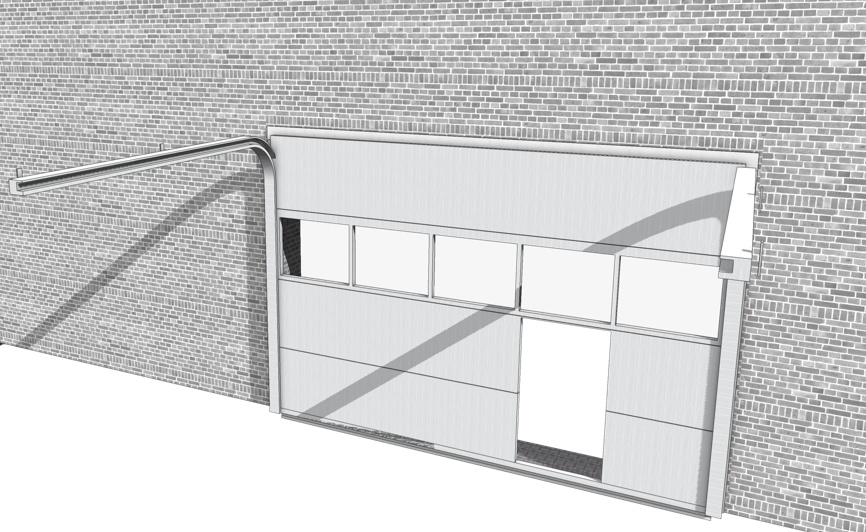

Leaf with Side Door

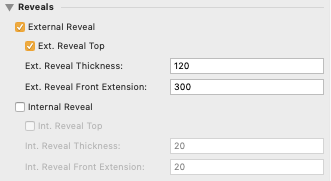

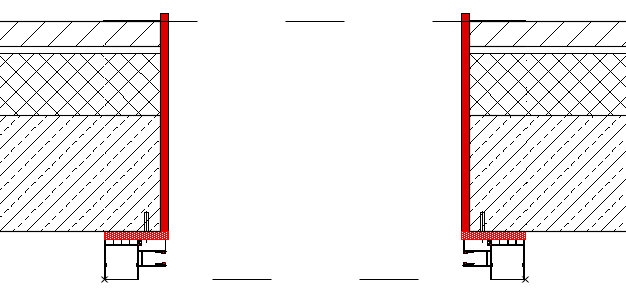

Reveals
External and internal Reveals

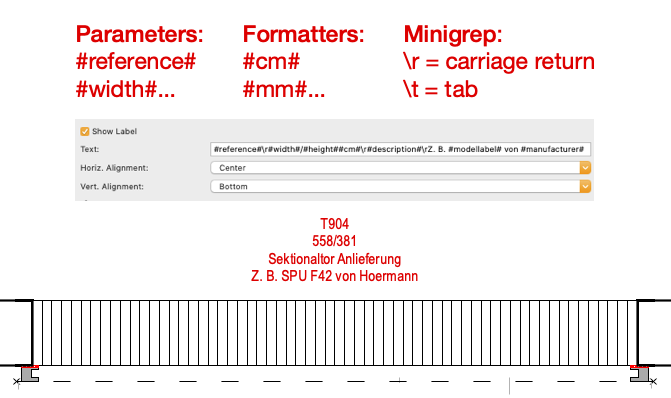

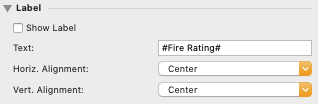

Label
Parameter-parsing label on drawing
Supports units formatters and minigrep

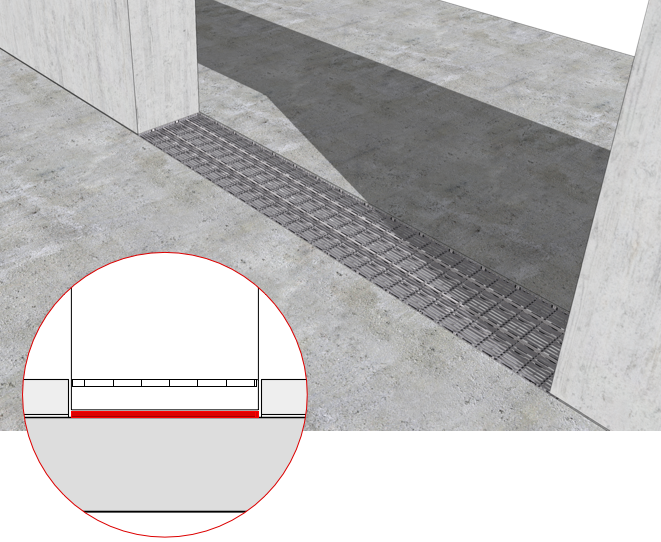

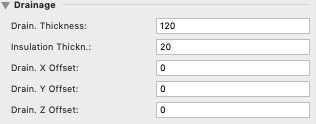

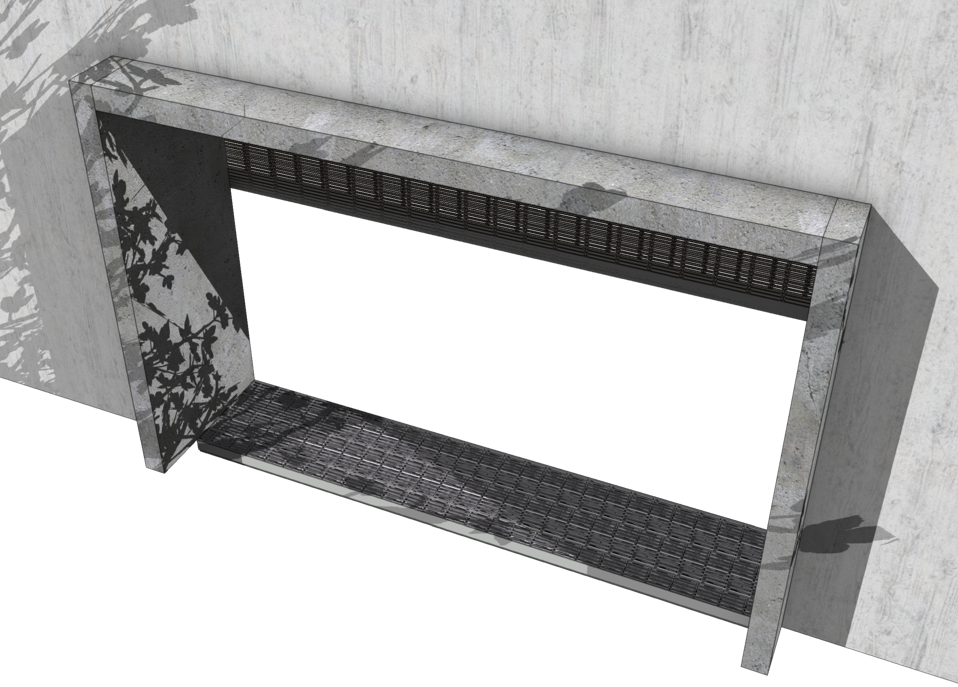

Drainage
Drainage with optional insulation

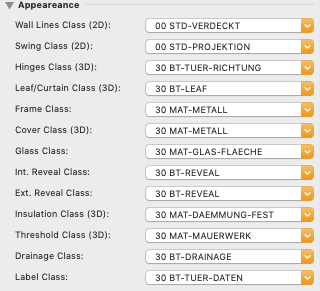

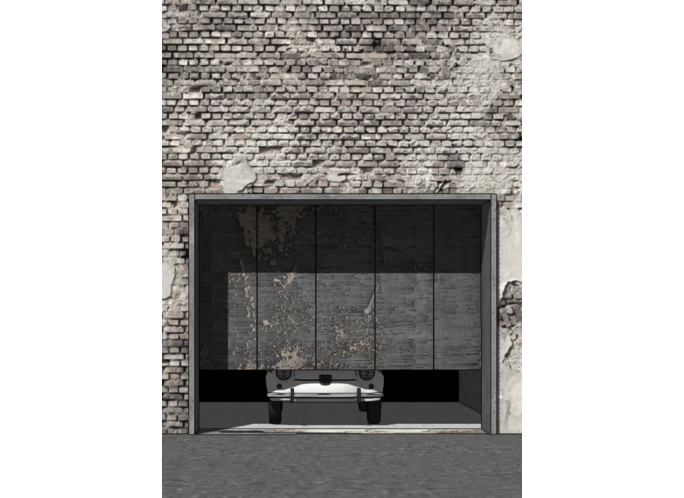

Appearance
Appearance in 2D, 3D and section

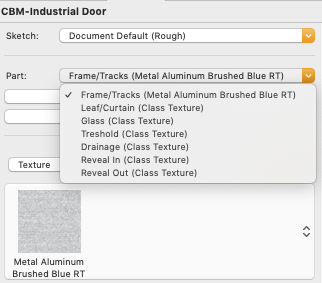

Custom texture parts

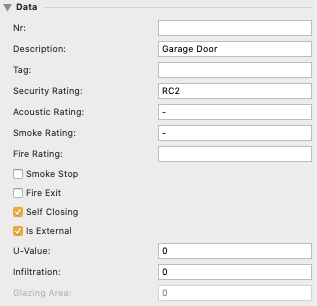

Data
Semantic, physical Data and Norms

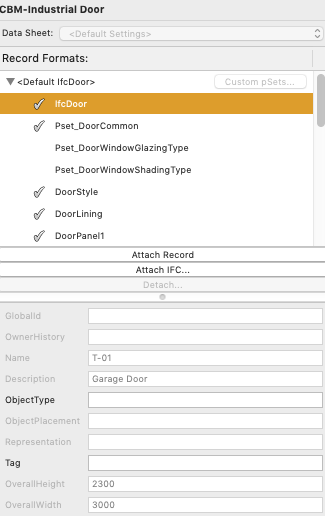

IFC automapping

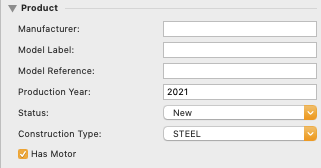

Product
Product attributes

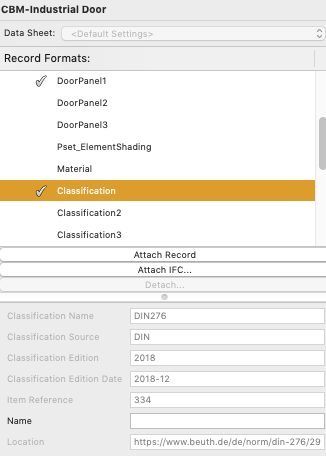

IFC classification DIN 276
