CBM-Window
DISCONTINUED: All my tools are developed solely to improve my own real-world productivity, are developed in my spare time from a real full-time job and sold on request for a nominal fee only. After over 20 years, I discontinued my development for Vectorworks since I moved to Archicad. This page is legacy only.
Draws: window, window-door and opening objects. Straight and round, with optional reveals, sills, sun shading. Supports corner windows, custom part textures, plug-in styles, catalogs on demand, automaps its own IFC export.
Outputs: 2D, 3D, IfcWindow, IfcDoor, IfcOpening, DIN 276 Classification

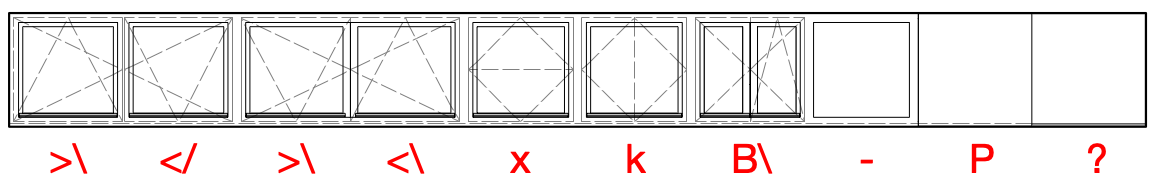

Configurations: - = fixed, P = panel, > = left casement, < = right casement, ) = bipart uneven left, ( = bipart uneven right, B = bipart even, / = bottom hung, \ = top hung, x = pivot horizontal, k = pivot vertical, ? = empty
Options: \ = hopper bottom hinged, / = awning top hinged, k = pivot vertical, d = door swing, dashed as override to the chosen class, O = door towards outside, D = door swing
Parameters:

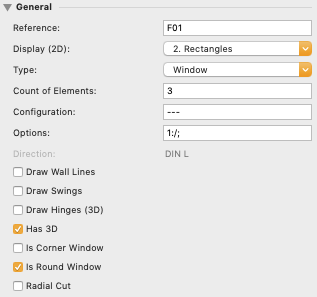

General
Minimal interface, round walls support upon insertion
Three 2D detail levels

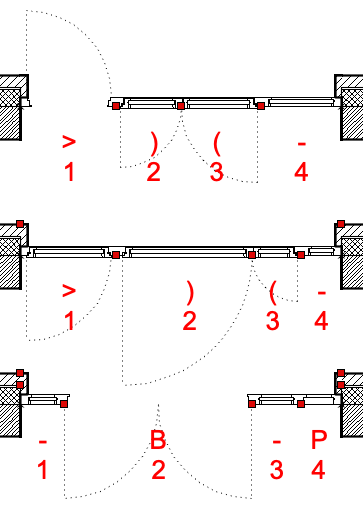

Code-style configuration:
direct modifiers, no interface
Control-point driven Elements:
direct editing, no interface

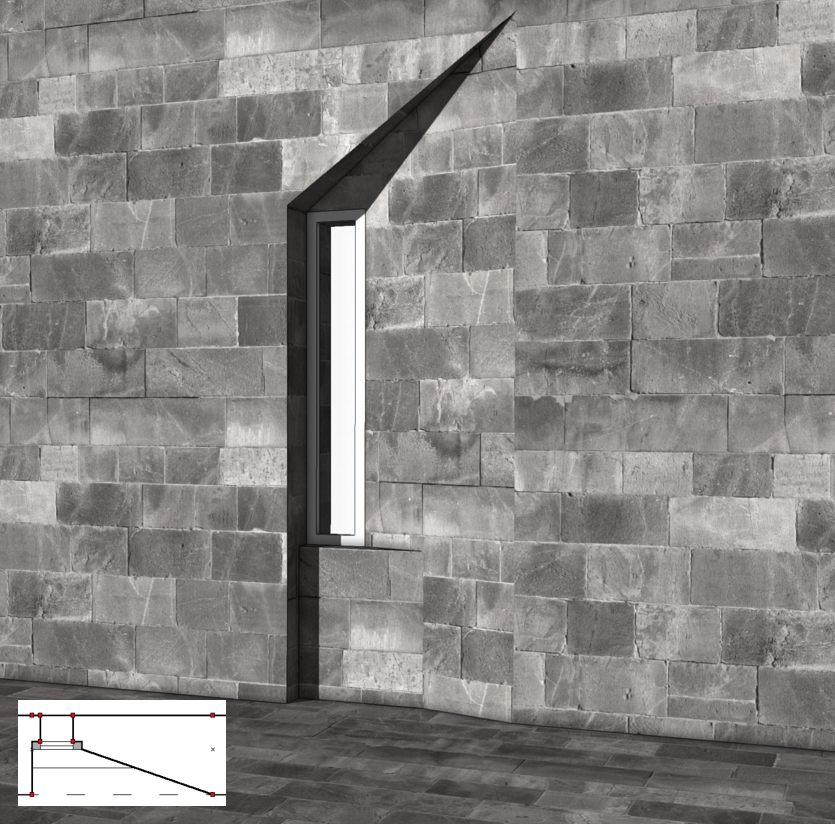

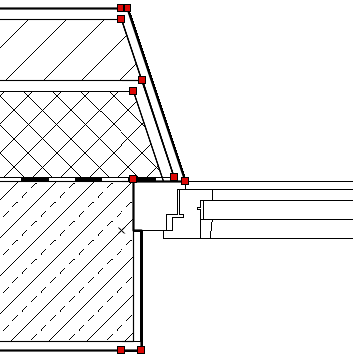

Sculptural wall cuts through 2D control points, no interface:

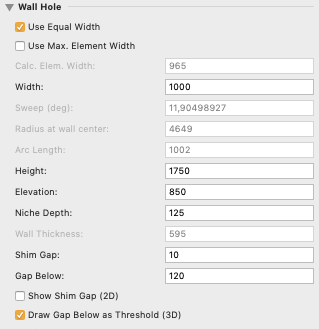

Wall hole
How the window element cuts into a wall, round wall infos and control

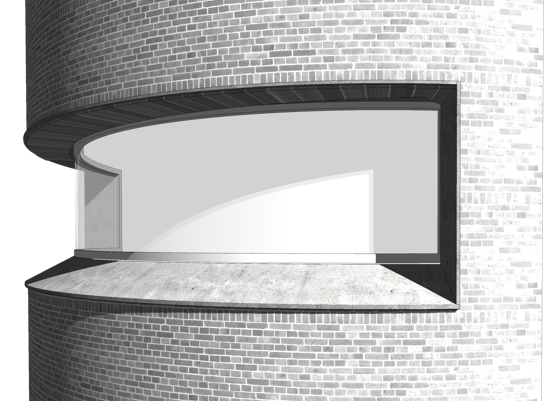

Round Wall support

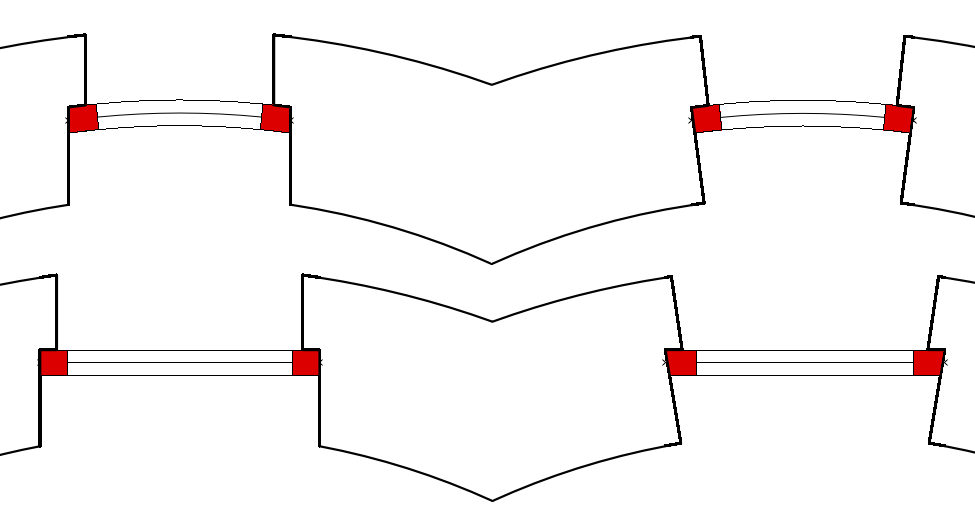

Round or straight window with radial or straight sides

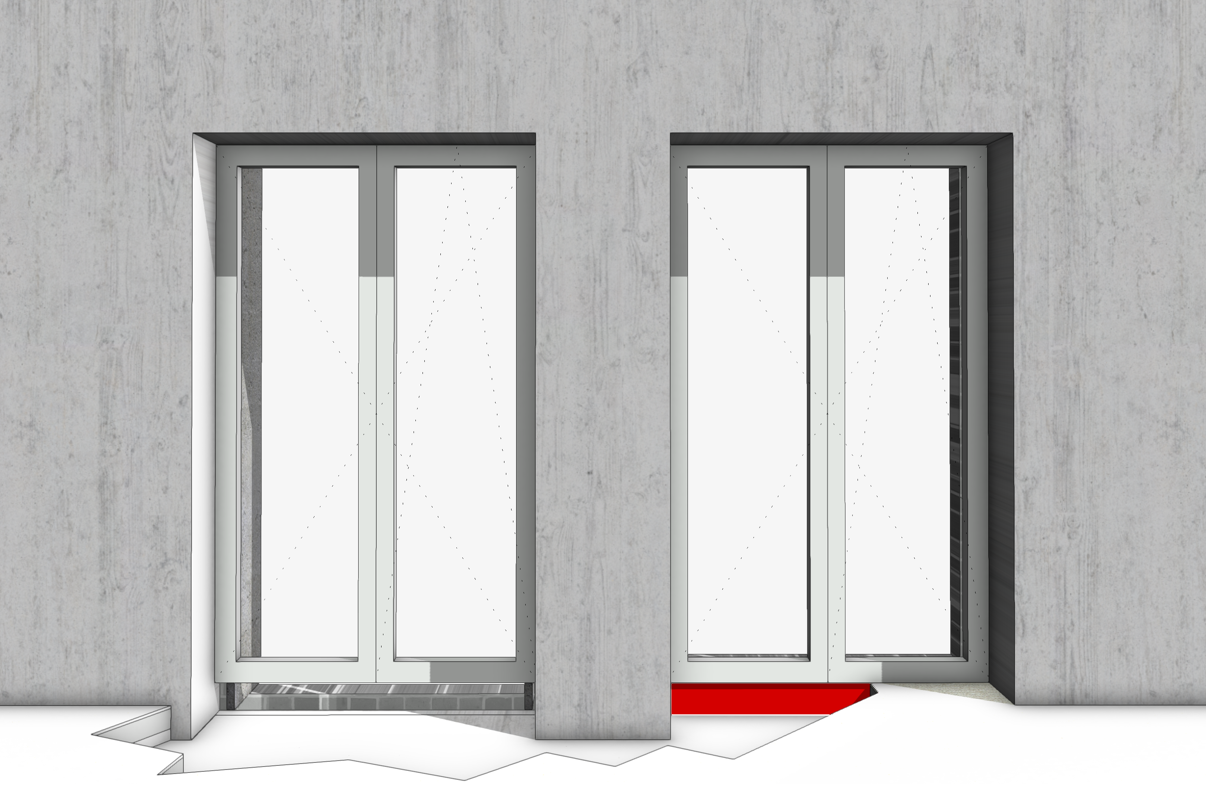

Wall hole to carrying slab independent from window element's height, optional threshold

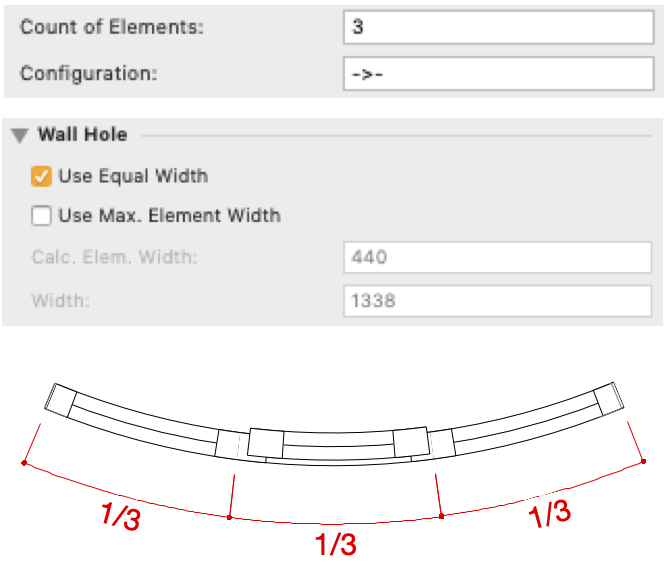

Calculated equal element width, option for max element width

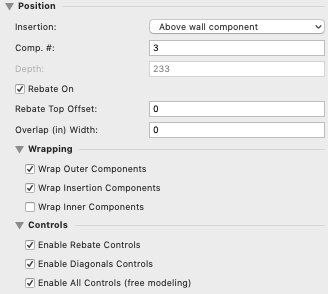

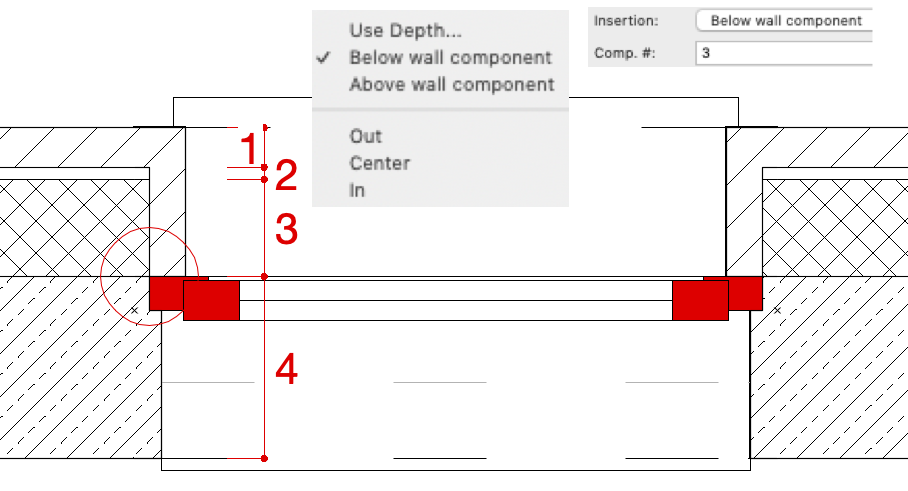

Position

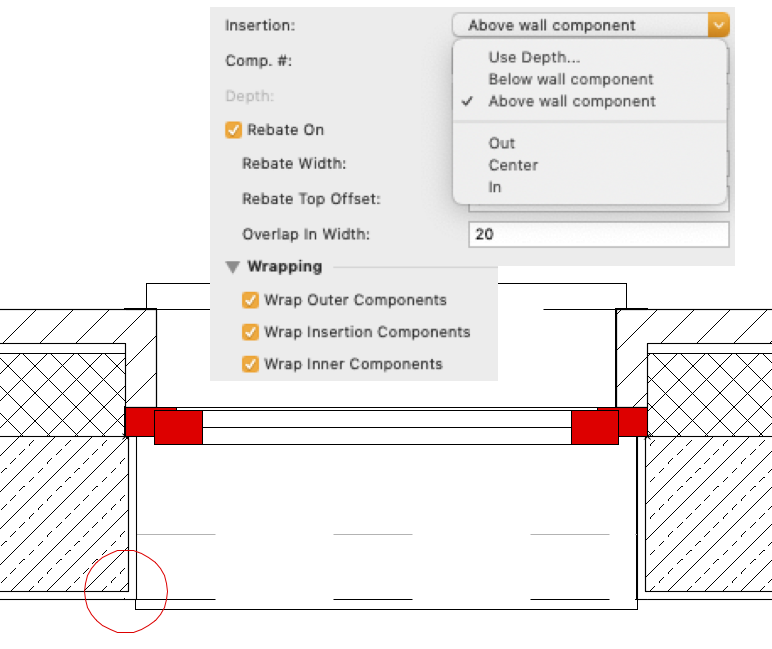

In-Wall Placement with Wall Components, detailed wrapping controls
Full styleable, Component wrapping and positioning
Corner windows

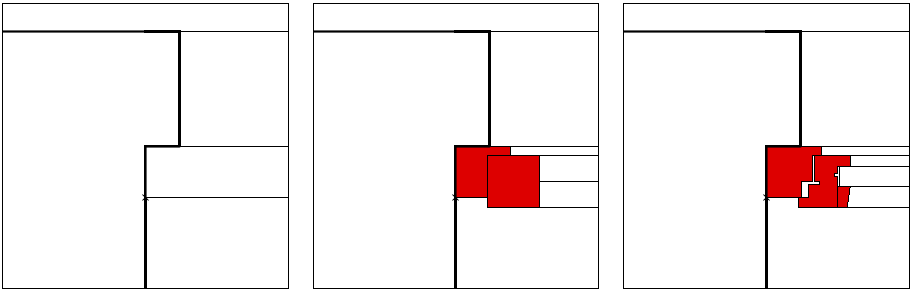

Freemodeling of components in plan through control points: direct edit, no interface

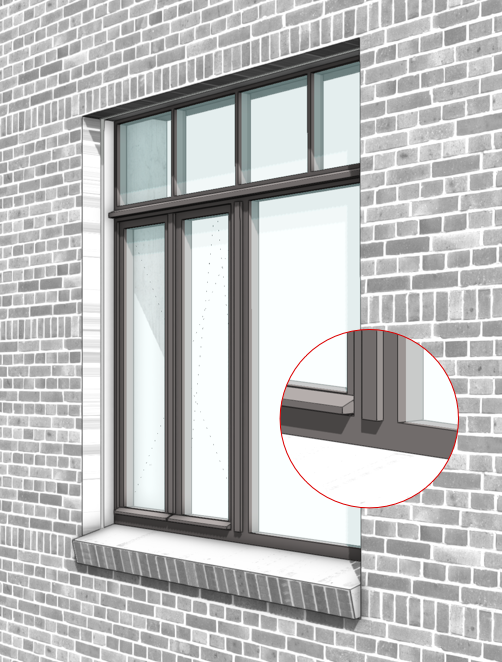

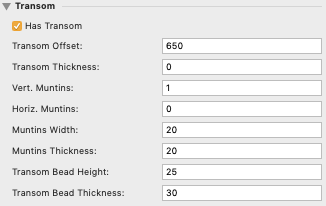

Transom
Window parts above
Transom with muntins

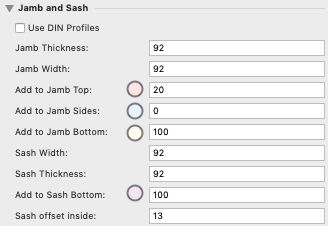

Jamb and Sash
Profiles settings
Full control on Jamb and Sash offsets

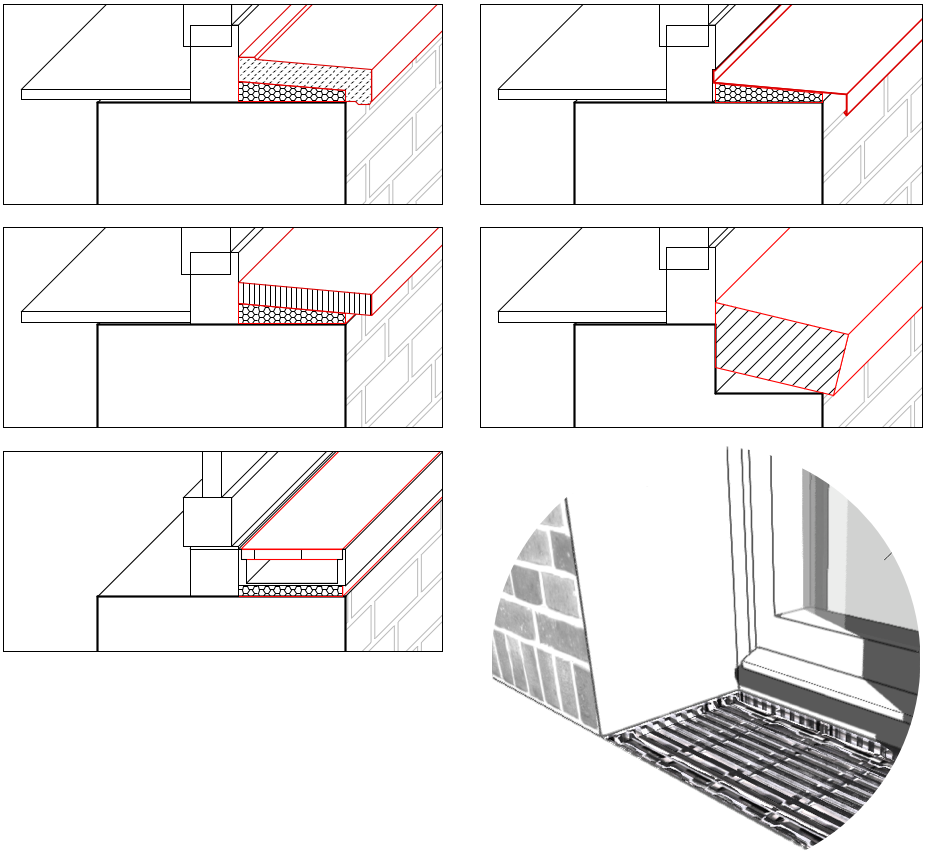

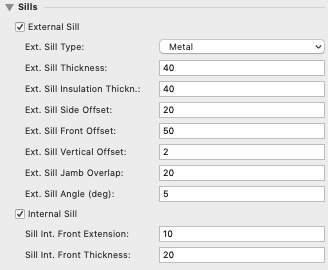

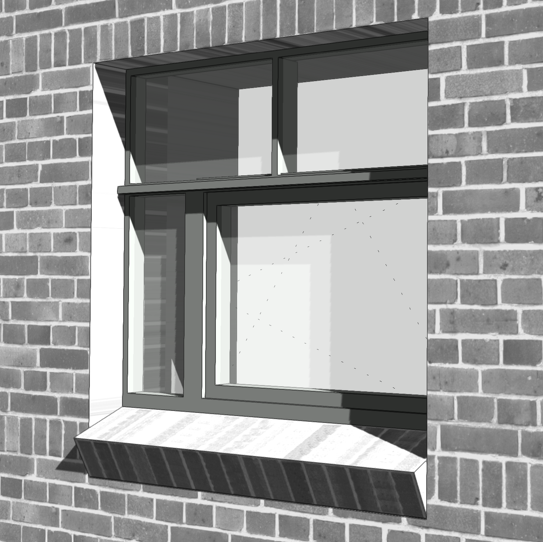

Sills and Drainage
Outer and inner Sills, option for Drainage
Metal, concrete, plank, brick sills and drainage, optional insulation

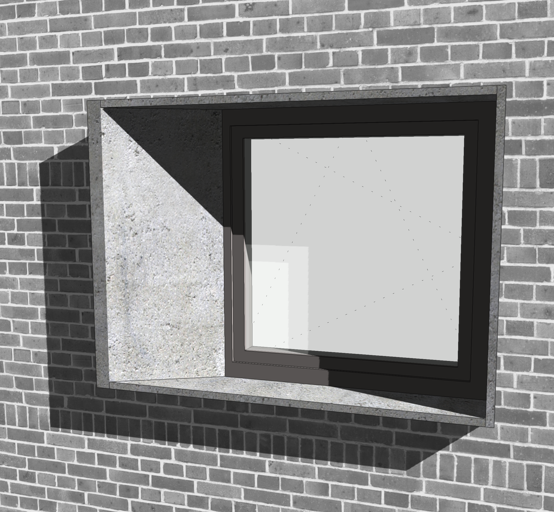

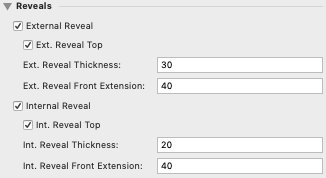

Reveals
Reveals outside and inside

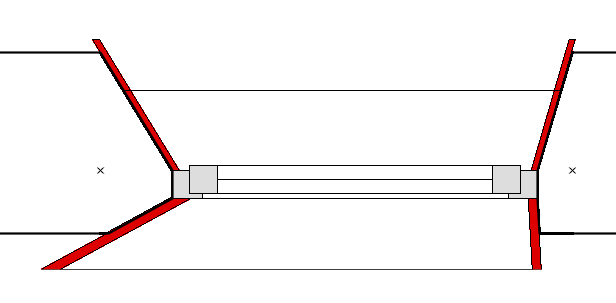

Control-point driven Reveal construction

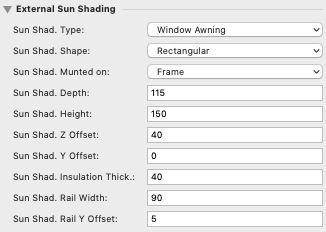

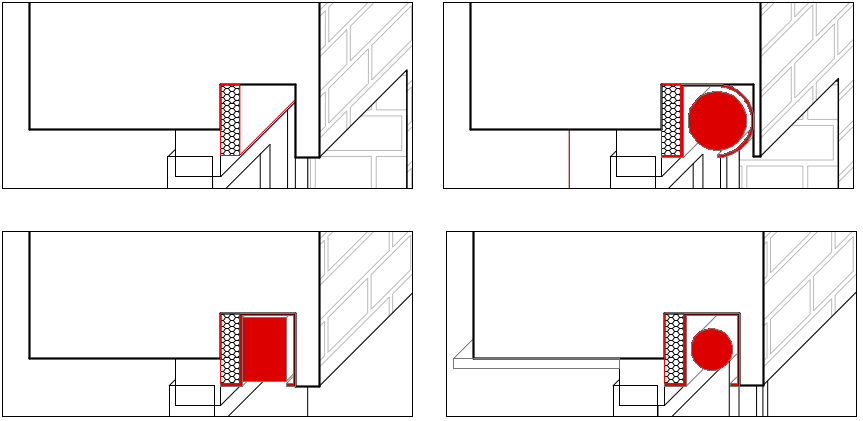

Sun Shading
External Sun Shading
Window Awning, Roller Shutter and Venetian Blinds, round and rectangular, optional insulation

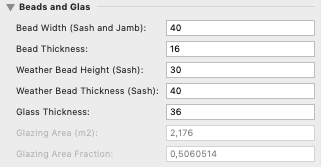

Glas and Bead
Glas settings and bead option
Glas and Beads for woodden windows

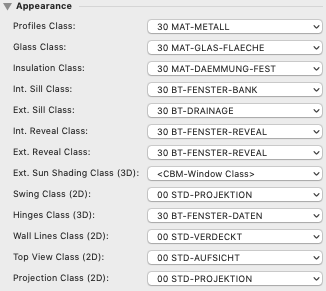

Appearance
Appearance in 2D, 3D and section

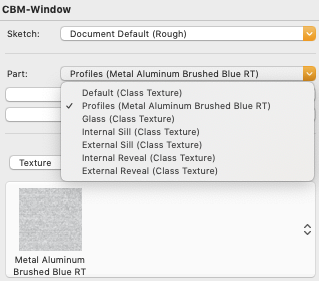

Custom texture parts

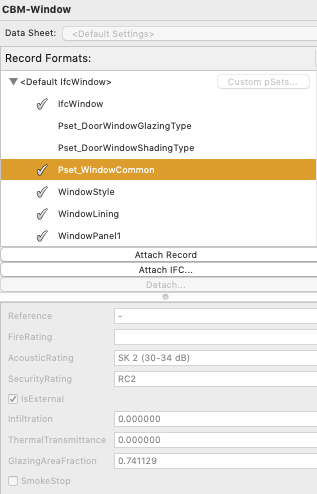

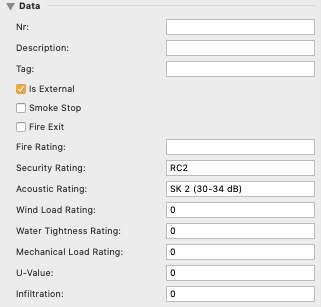

Data
Semantic, physical Data and Norms
IFC automapping

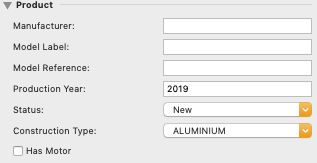

Product
Product attributes

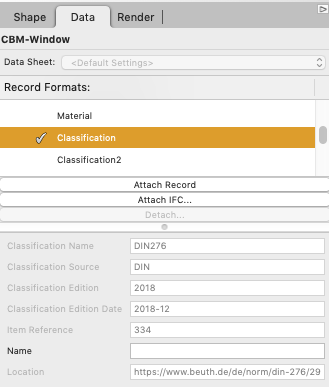

IFC classification
